Our Products and Services

The Best Products and Service For You

Powerext Control Systems manufactures a wide range of LT electrical control panels—from basic models to advanced, commercial, and industrial-grade solutions. In addition, the company designs and produces custom control panels tailored to the unique specifications and operational needs of each project. We have designed, manufactured, tested, and commissioned a diverse range of products for multiple projects, with LT ratings of up to 6300A

Motor Control Panel (MCC Panel)

The Motor Control Center (MCC) is the central location for controlling electric motors. Which has a motor starter, fuse or circuit breaker and power disconnected. A special instrument called a motor control panel is used to control motors in most industries. In many commercial & Industry applications multiple electric motors are required and it is often desirable to control some of the motors. The apparatus designed for this type of function is the motor control centers mccs.

Types of Motor Control Centers:

PMCC Panel
Intelligent MCC Panel
Soft Starter Control Panel
VFD (Variable Frequency Drive) Panel

Our LT MCC and PCC panels are made up of 14/16 SWG CRCA material semi bolted structure Supported. Ensures desired breaking capacities, temperature rise & short circuit protection. Enough Space for incoming & outgoing Cable termination. When a motor operation runs with the protection of overload relays or solid-state motor controllers. An MCC Panel manufacturer has control from a remote or local push buttons that is called a motor control panel. There are combinations of different types of motor starter like direct online (DOL) Starter or star-delta starter. Also, we can control with VFD (Variable frequency drive) or Soft starter using factory assembly of several motors. MCC panels have multiple combination starters with various motor protection. Skyvolt System Integrators is known as the best quality manufacturer supplier for motor control solutions in Ahmedabad Gujarat India. Our electrical service Using in Dryer control, Boiler Control, HVAC plants, Manufacturing Industries, Cement Plants, and many more related to electricity. Skyvolt System Integrators focus the product and services delivery to industries such as Chemical power plants, Utilities of industries, Manufacturing plants, Mining and ball mills, Food Beverage, Marine, Oxygen plants, and Other industries that require a reliable partner for a cost-effective solution for electrical panels.

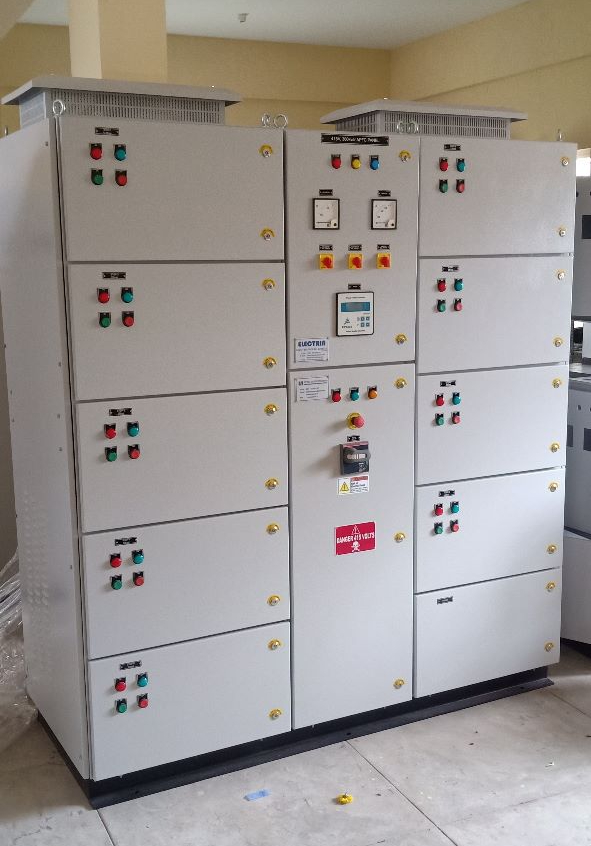

Automatic Power Factor (APFC Panel)

Reactive Power compensation system is designed to work automatically on the LT power supply to measure, display & connect, and disconnect the required capacitor banks through Thyristor /Capacitor Duty contactor with the protection of MCB / HRC Fuses & series reactors to each bank to achieve the set Target power factor.

The thyristor/Contactor Switched Automatic power factor system is a highly accurate, properly designed system with the required creep age distance as per required standards. APFC System is equipped with an advanced, Digital Microprocessor based relay to measure, calculate and display all electrical network parameters. It accurately measures cycle-to-cycle reactive power requirements for required capacitors are connected to the switching element/device installed in the system, so as required capacitors are connected/disconnected to the network. APFC Controllers close loop fast response multi-method switching [MMS] algorithm helps the system to have close & precise control of power factor.

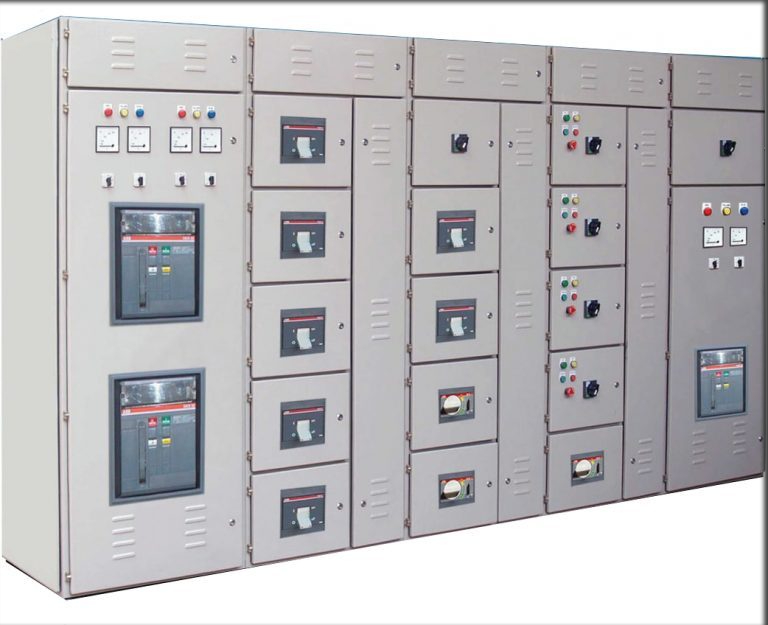

Power Control Centre (PCC) Panel

PCC Panels are the most essential part of the electrical system of an industry from where the power of the industry is controlled.

PCC Panel is a power distribution board to control the Electrical power supplied to HT Panels, MCC panels, and transformers who play a vital role in all electrical control systems.

The power Control Centre is used for the distribution and control of various power source used in industry. Normally Power Control Centres is installed near power source hence fault level is high. Various protections viz short circuit, overload, earth fault, under voltage, etc. are provided to protect source and equipment. PCC Panels are widely used in refineries, chemical plants, pharmaceuticals, and Solar Industries.

Automatic mains failure (AMF Panel)

Automatic mains failure (AMF) panels, often referred to as automatic transfer switch (ATS) panels, make the power switch to emergency standby generators in the event of a significant loss of mains power or total blackout. Without AMF panels, generators need to be operated manually and that can mean lost data, potential damage to electrical equipment, and huge amounts of disruption.

AMF and ATS panels monitor the incoming AC mains supply, activate the standby generator when mains power fails, and make an automatic electrical transfer of the building’s load from the mains to the generating set. When the mains supply returns, the AMF panel controls a return to the mains supply and shuts down the generator after a suitable cooling run.

Heater Control Panel powered with thyristor (SCR device)

Process heater control panels are specifically selected and designed to fulfil the control requirements of most process heating applications

VFD Control Panel

Electrical VFD control panels are designed to control the speed of electric motor and feed pump. They are widely used in drilling, pumping and other large machine applications.

The VFD panels are widely used in tube mills, paper mills, extruder plants, rolling Mills, cable industry and CTL Lines. They are even installed in hospitals, business houses and other public places.

VFD control panel are designed to match variable speed requirements of a process unit and so are vigorously tested on various speed parameters.

Roughly 50% of the total electrical energy generated in the world is consumed by rotating equipment. Variable frequency drive technology offers a cost-effective method to match motor speed to load demands and represents a state-of-the-art opportunity to reduce operating costs and improve overall productivity. VFD Cabinets are custom made to your specifications for your application.

Soft Starter Panels

Soft Starter panels are used to eliminate the high inrush current and start-up torque on every start. MV Soft Starter panels, offered by us, provide starting parameters that increase the life of heavy-duty compressor & blower, ID/FD fans, chillers, coolers and pumps.

We use premium electrical components, compressors, motors and allied materials for the fabrication process. The soft starter panels are incorporating with a motor protection device/relay as RS 485 communicable with overload, under current, ground fault current imbalance over temperature package.

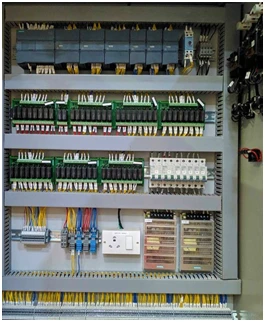

PLC Control Panel

Programmable logic controller (PLC) control panels or also known as PLC Automation Panel are one of the most important and efficient kinds of control panels. Which are generally used in a variety of electronic and electrical circuit fittings.

PLC Control Panels we manufacture are highly capable of giving higher output at less power consumption. Integrated with solid PLC logic and flawless PLC hardware programming. Ease in modification of logic, reduced size, means of remote communications, and advances in technology have made PLC Automation Control Panels an edge over conventional relay-based systems. Our Engineers have provided PLC-based Panels from Various PLC.

From small I/O applications to complex I/O systems are provided by the Skyvolt System Integrators. Skyvolt System Integrators have developed communication softwares for remote communication of the PLC Panels in various different protocols. With PLC based Panels HMI/MMI are provided to provide the operator various messages and controls of the process plants touch screen MMI are provided. To effective control of the system.

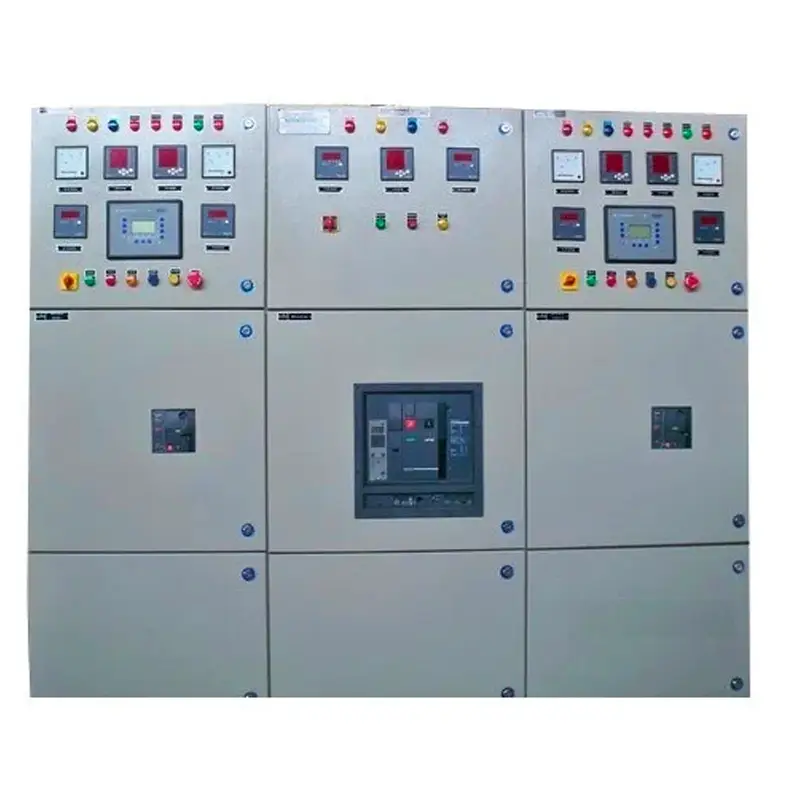

DG synchronizing panel

DG Synchronization Panel comprises of special relay that automatically performs synchronization of two or more sources of power. Beside that we also provide load-sharing relays so that each DG shares the equal load and load management relays to control starting & shutting off Generators depending upon load requirement.

There are four basic motor control centres in the manufacturing line:

Auto On Main Failure
Synchronizing
Active Load Sharing
Reactive Load Sharing
Generator Protector

PLC (Programmable Logic Controller) based synchronizing panel provides all the monitoring & control of the synchronization with dedicated PLC modules it is also possible to have PC based power management or load management using PLC’s.
